PCI / UC Starlink Gen3 Packages

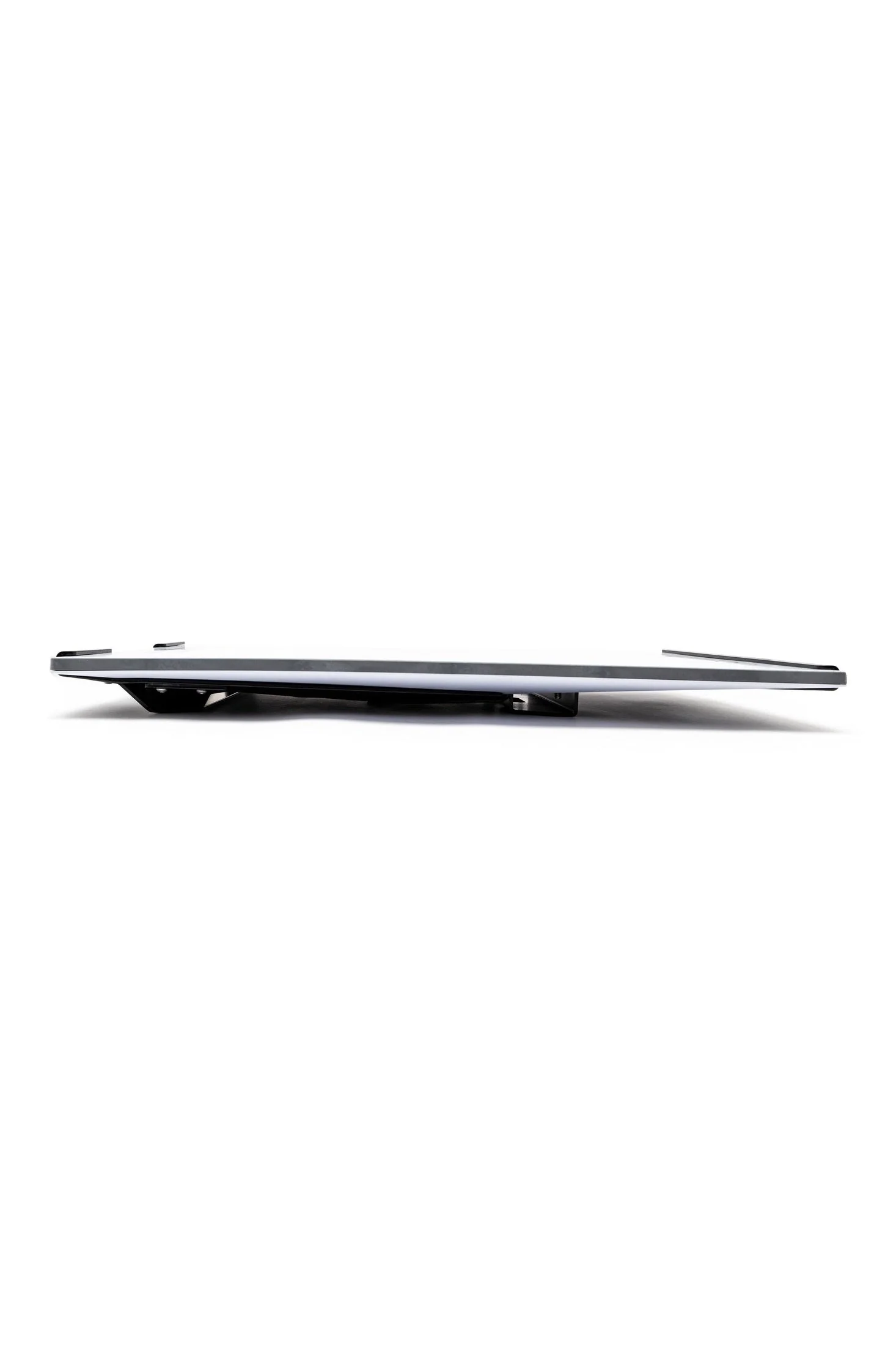

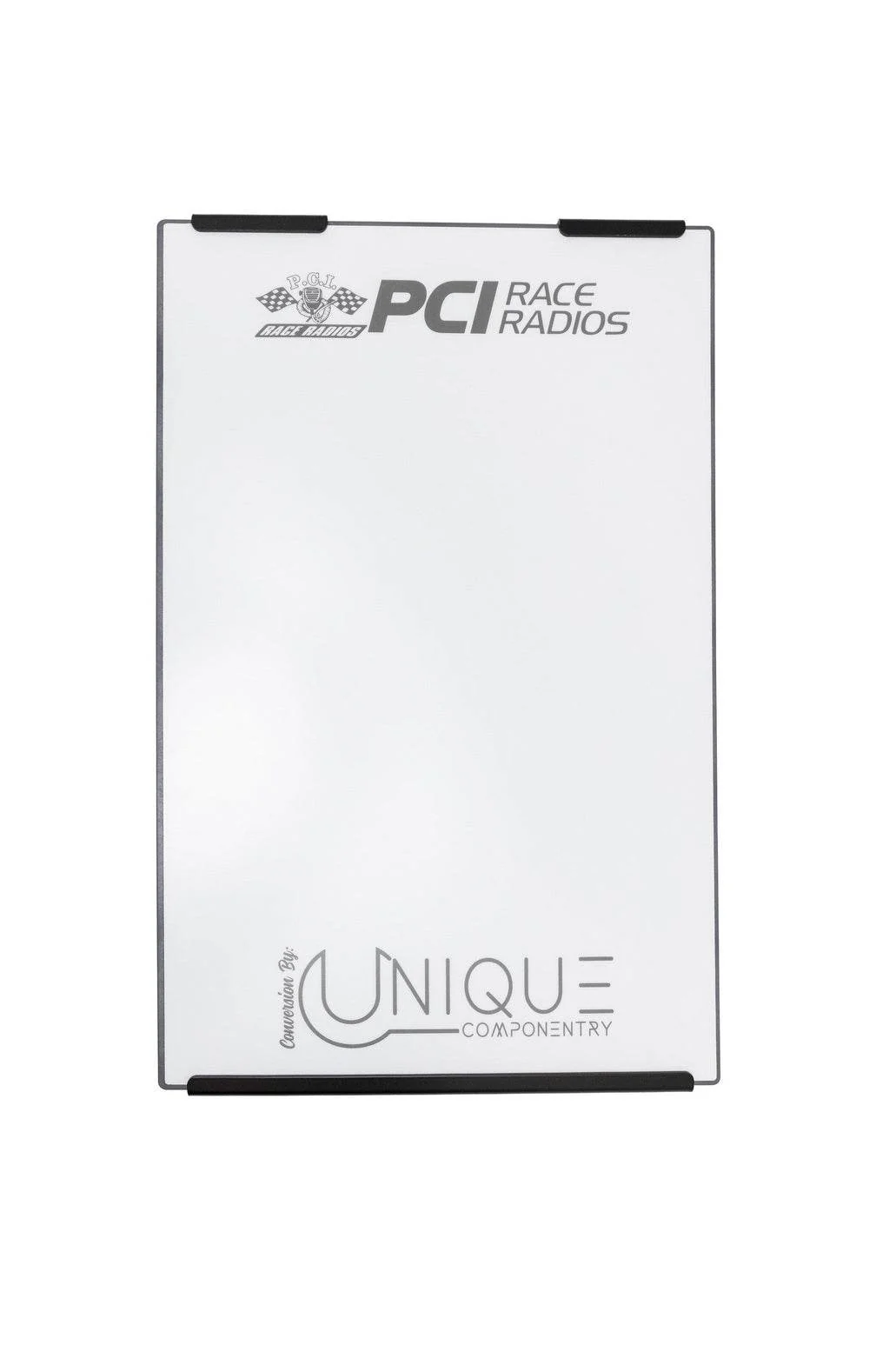

All new Starlink Gen 3 easy solution for satellite internet on your Race Truck, Chase Truck or RV. This Unique Componentry Starlink IP65 conversion offers a flat panel, all in one 12V conversion. Compatible with any Starlink Gen 3 mount for alternative mounting options.

Also available in Starlink Gen 2 which features a smaller overall footprint, lower height and lower power draw.

What's Included in the Chase Package:

• New Starlink V3 Antenna* with built in Starlink Wi-Fi 6 router for better router distance
• 6 ft Power Cord (includes an optional cigar adapter, but we don't recommend using this for best power and speeds)
• 20 ft 10 gauge direct to battery wiring harness (recommended)
• 110v power adapter

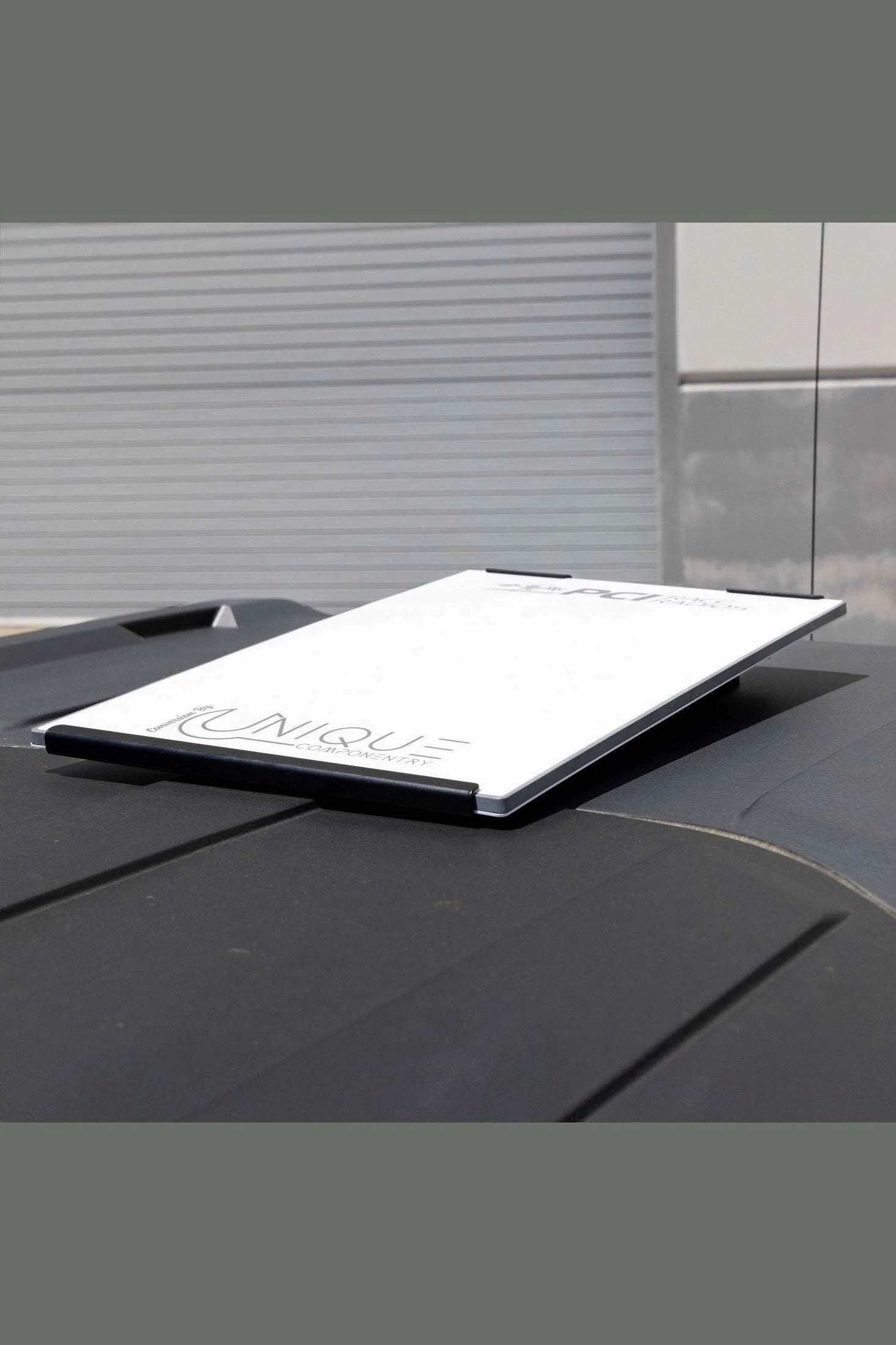

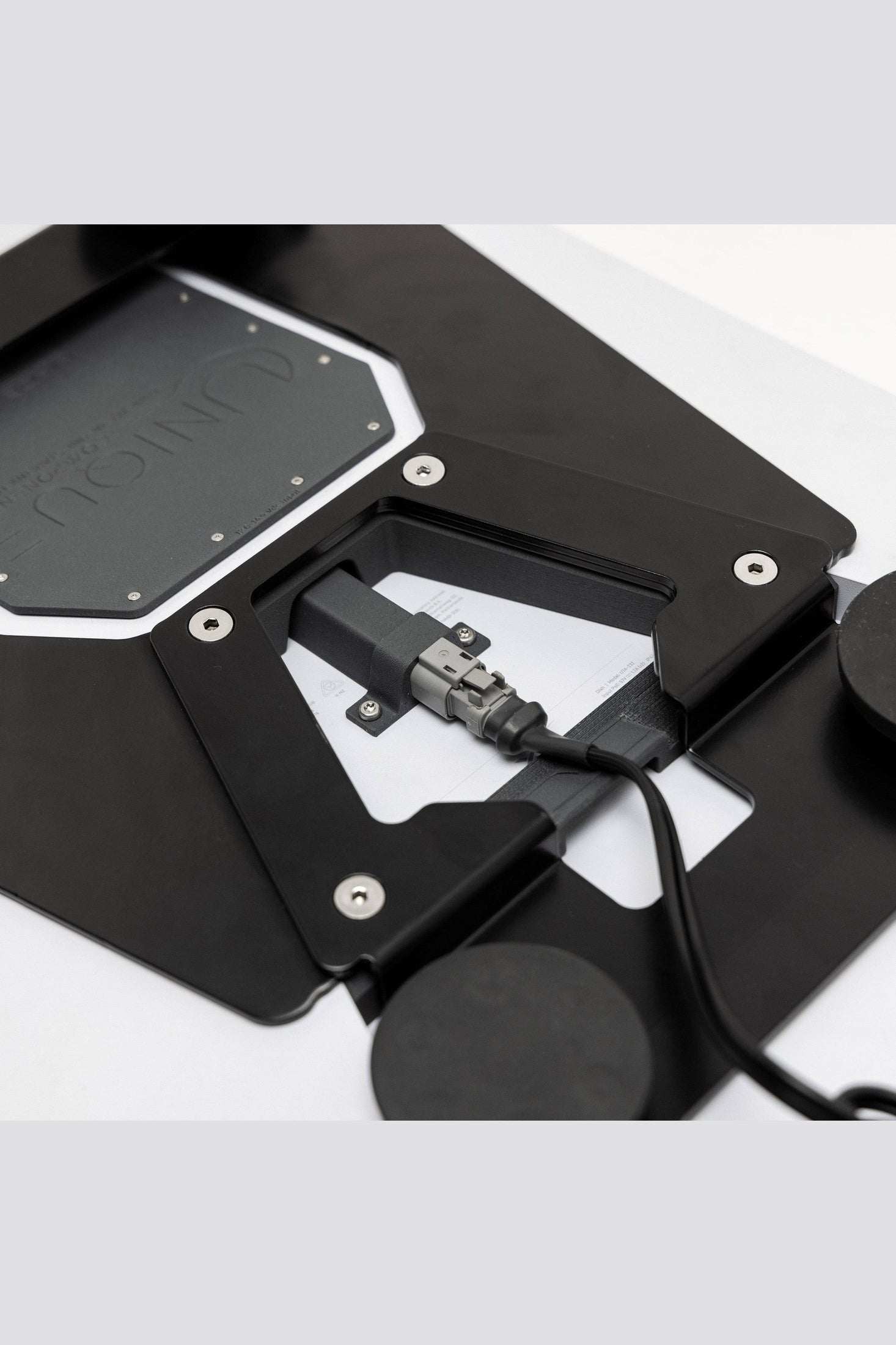

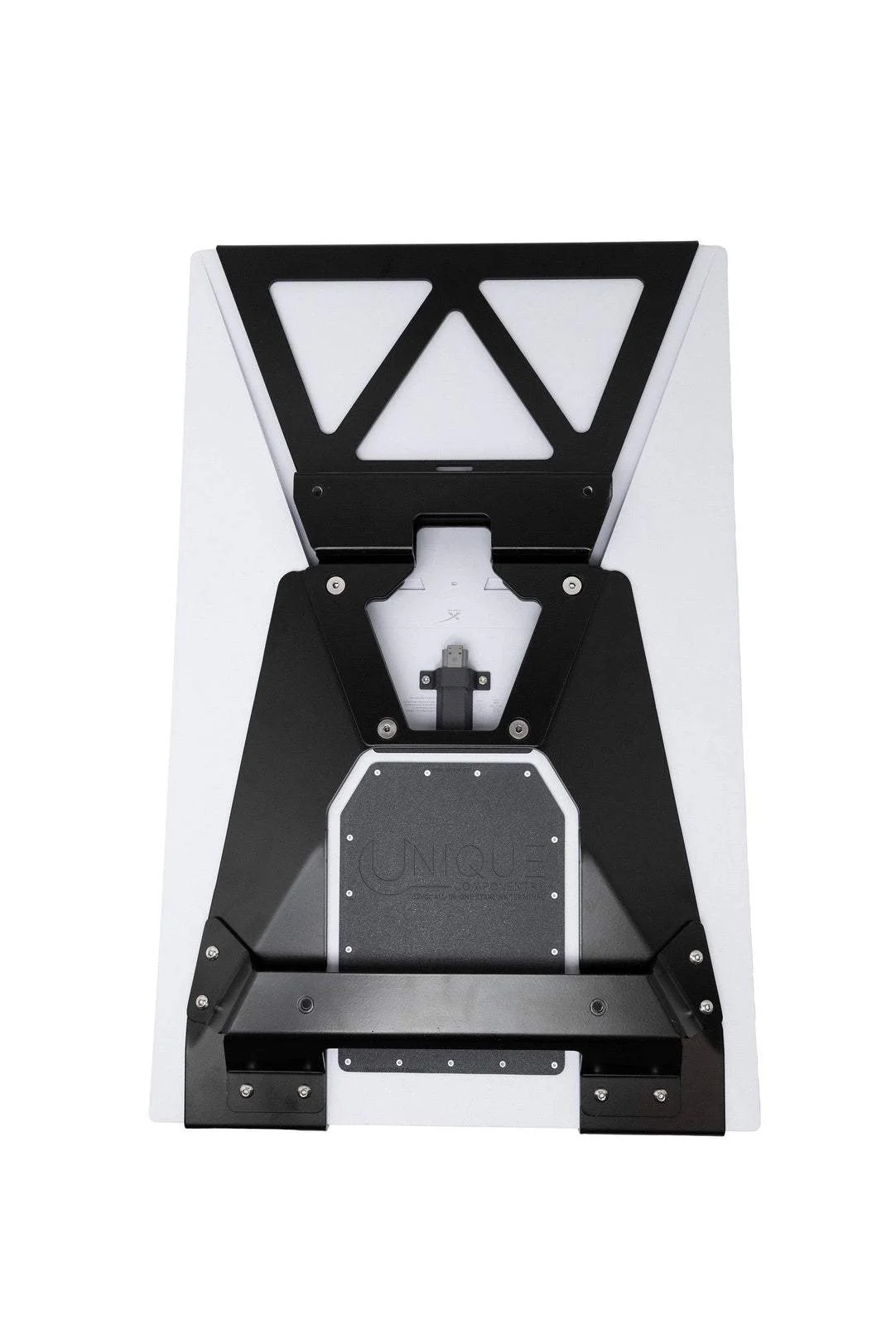

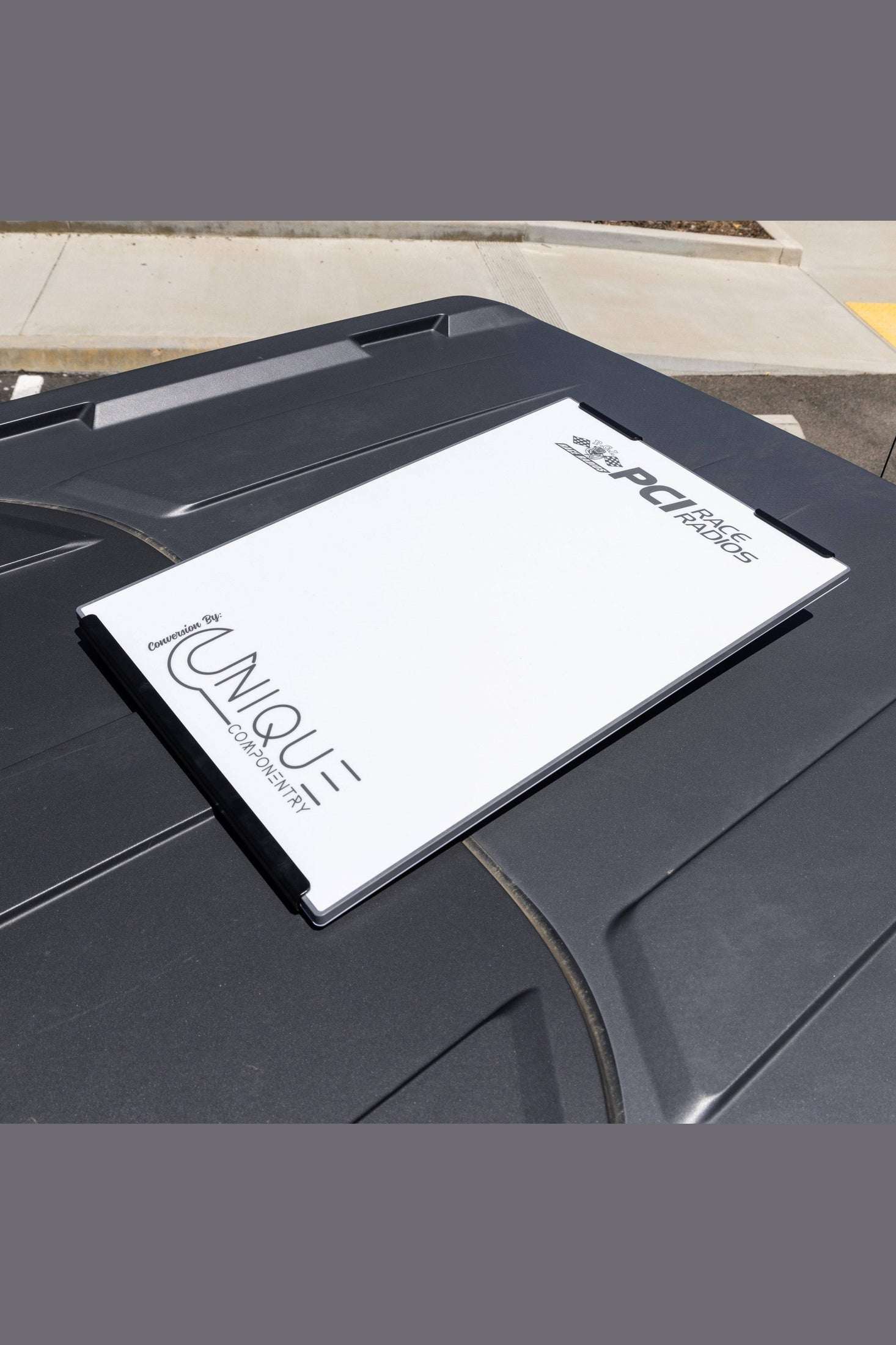

• Aluminium Wedge Mount with Flexible Magnet feet, includes a spacer kit for tall roof ribbing
• Steel adhesive landing pads for aluminum roofs
• High quality, zippered carrying case

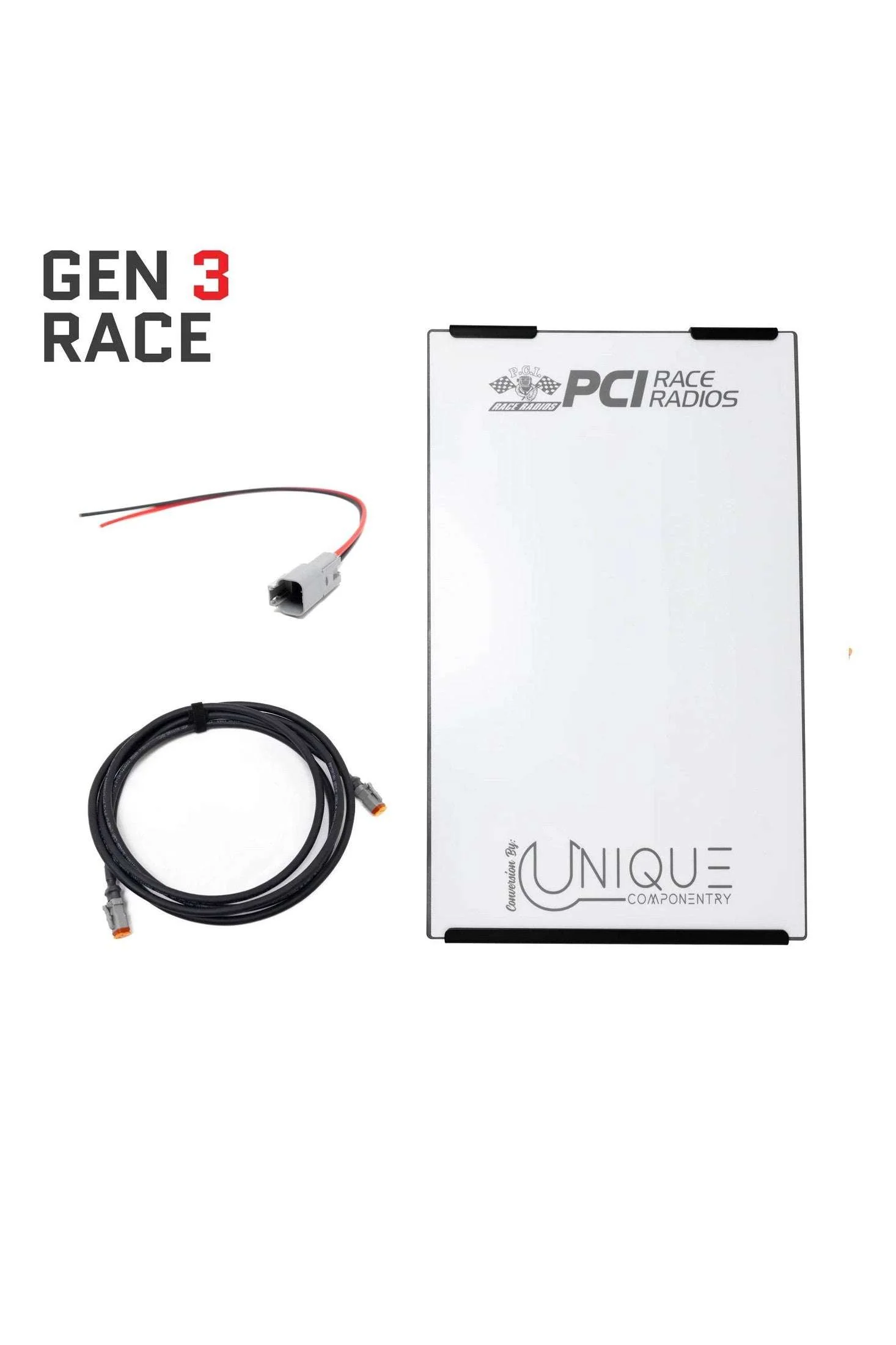

What's Included in the Race Package:

• New Starlink V3 Antenna* with built in Starlink Wi-Fi 6 router for better router distance
• Aluminium Flat mount bracket.
• 10 ft Duetsch direct to battery wiring harness

*Starlink Service Sold Separately. You will receive instructions with your device for activation. These are USA devices. There are roam services plans available to allow use in Mexico and Canada, but they need to be activated with a US address or may be subject to a region activation fee. Read more about outside region activation fees here.

The Unique Componentry conversion voids the factory Starlink antenna warranty. Unique Componentry offers a 1 year warranty to the original purchaser on Unique Componentry workmanship and parts only. Reverse polarity, over voltage, removing back cover or using non Starlink OEM/Unique Componentry parts will void your Unique Componentry warranty. There is no warranty available on mounts. For warranty, email [email protected] directly. For service, please download this form.

Starlink Satellite Antennas are FINAL SALE

Specifications

• Overall dimensions 23.75" x 15" x 2 3/4"
• Weight - 10.65lb Including Bracket With Magnet Feet
• Power Draw - 8.5amp (102 Watts) on startup/searching. 3.5amp (42 Watts) Operating Once Connected

Antenna Specs:

Antenna	Electronic Phased Array
Field of View	110 °
Orientation	Software Assisted Manual Orienting
Weight	see above
Environmental Rating	IP67 Type 4
Operating Temperature	-30°C to 50°C (-22°F to 122°F)
Wind Speed	Operational: 96 kph+ (60 mph+)
Snow Melt Capability	Up to 40 mm / hour (1.5 in / hour)
Power Consumption	Average: 75 - 100 W

Wifi Router Specs:

Product Dimensions	built into antenna dish
Wi-Fi Technology	802.11 a/b/g/n/ac/ax
Generation	Wi-Fi 6
Radio	Tri Band 4 x 4 MU-MIMO
Ethernet Ports	Two (2) Latching Ethernet LAN ports with removable cover
Coverage	Up to 297 m² (3,200 ft²)
Operating Temperature	-30°C to 50°C (-22°F to 122°F)
Weight	0.57 kg (1.25 lbs)
Security	WPA2
Environmental Rating	built into antenna dish
Power Indicator	LED | face plate, lower left corner of router
Mesh Compatibility	Compatible with Starlink Gen 2 and Gen 3 Mesh nodes, up to 3 Starlink Mesh Nodes. *Not compatible with 3rd party mesh systems
Devices	Connect up to 235 devices

Configuration Guide

Click here to download
